Speed Slides

The open body slides and the enclosed body slides are the basic elements for a water park.

The inner-tube slides are bigger slides to be used with inflatable inner-tubes.

For people that like thrilling rides to satisfy their need for adrenaline.

The Amazon River is a slide open for use with rafts of up to 5 persons.

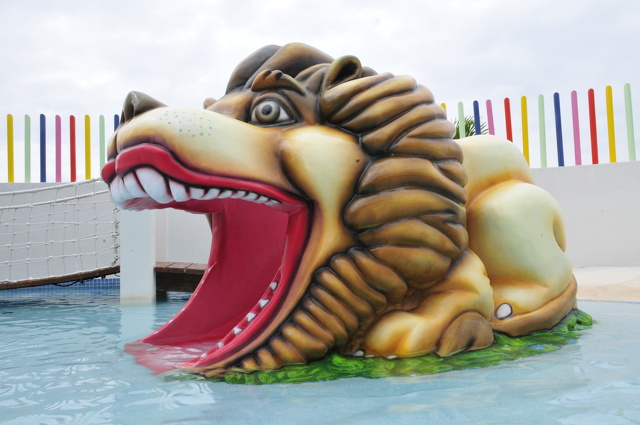

Kids areas include interactive elements and decorative elements.

Play structures are modular attractions which are used as exit islands for slides.

Open Panel

These slides are a great complement in a water park. Usually every water park has a kids area with some slides for children, they also have some family slides like traditional body slides and inner tube slides. But there are always members that like thrilling rides to satisfy their need for adrenaline. What they need are extreme slides.

Kamikaze

Open high-speed body slide that gives the user the feeling to be flying. It can be from 100 feet long to 330 feet long. The platform height varies from 23 feet to 50 feet high.

It is a complementary slide because it is only used by those users who like speed rides and the users flow is low.

Characteristics:

Users ages/height: Form 12 to 40 years old or from 5' and higher

Speed: High

Gradient: 10% to 60%

Arrival: Only run out recommended. Arriving to a splash pool is not suggested because it could be a radical speed change

Water requirements: 190 gallons per minute

Design: In a straight line. This slide is a high speed ride, so the only design proposed is in a straight line

Colors: We use solid colors. We recommend to use 2 colors for the water slide, one color for the inside (the sliding area) and a different color for the outside. We consider the minerals in water for the inside color and we use long lasting colors in the outside

Combination: This slide can be combined at the beginning with an enclosed dark body slide Aquatubo 32" to create a surprising come out when the high speed section starts

Stuka

Open free-fall body slide that give the user the sensation of being falling down. The length can be from 100 feet long to 330 feet long. The platform height varies from 23 feet to 50 feet high. It is also a complementary slide.

Characteristics:

Users ages/height: Form 12 to 40 years old or from 5' and higher

Speed: Very High

Gradient: 10% to 60%

Arrival: Only run out recommended. Arriving to a splash pool is not suggested because it could be a radical speed change

Water requirements: 190 gallons per minute

Design: In a straight line. This slide is a high speed ride, so the only design proposed is in a straight line

Colors: We use solid colors. We recommend to use 2 colors for the water slide, one color for the inside (the sliding area) and a different color for the outside. We consider the minerals in water for the inside color and we use long lasting colors in the outside.

Torbellino Bowl

This is one of the most showy attraction in a water park. this slide has 3 phases:

1. Acceleration. It is generated through a high speed fall inside an enclosed body slide. The standard length is 75 feet but we can vary the length to make a longer more trilling slide up to 300 feet long. This phase is to boost the user into the bowl.

2. Bowl. In this phase the user arrives with a high speed to a 30' diameter bowl. It turns around the bowl for 2 to 3 times and starts to loose speed. Then it turns 2 or 3 more times approaching to the center of the bowl and loosing almost all speed.

3. Fall. The user comes out of the bowl into a 5' free fall to the pool. This pool is a 6' deep pool which increases the users surprise and excitement.

This is a very spectacular attraction and it helps a lot for marketing and advertising purposes, but it is also a complementary attraction because of its very low users flow. But a large crowd is commonly entertained watching the users sliding, turning and falling through the ride.

Characteristics:

Users ages/height: Form 12 to 40 years old or from 5' and higher

Speed: Very High

Arrival: 6' deep small round pool

Water requirements: 210 gallons per minute

Design: Limited standard design or more thrilling design if desired. The bowl is 30' feet wide and is a standard design

Colors: We recommend solid colors.

Aquaracer Multilane

This is a 4,6,8 or more lanes racer in which users compete in a speed race over a mat. This is a family slide, because even that speed is the main element, it is not an extreme ride and the mat gives a safety feeling to the user.

Characteristics:

Users ages/height: Form 10 to 60 years old or from 3'6" and higher

Speed: Medium to High

Gradient: 10% to 13%

Arrival: Only run out recommended. Arriving to a splash pool is not suggested because it could be a radical speed change

Water requirements: 190 gallons per minute per lane

Design: In a straight line 4, 6, 8 or more lanes. This slide is a high speed ride, so the only design proposed is in a straight line

Colors: We use solid colors. We recommend to use 2 colors for the water slide horizontally combined to make easy for the spectator to determine who is winning the race. This also gives a spectacular view of the slide
